Kawasaki Ninja ZX-10R 40th Anniversary Edition 2024 vs. Kawasaki Ninja ZX-10R 2023

Technical Specifications Kawasaki Ninja ZX-10R 40th Anniversary Edition 2024 compared to Kawasaki Ninja ZX-10R 2023

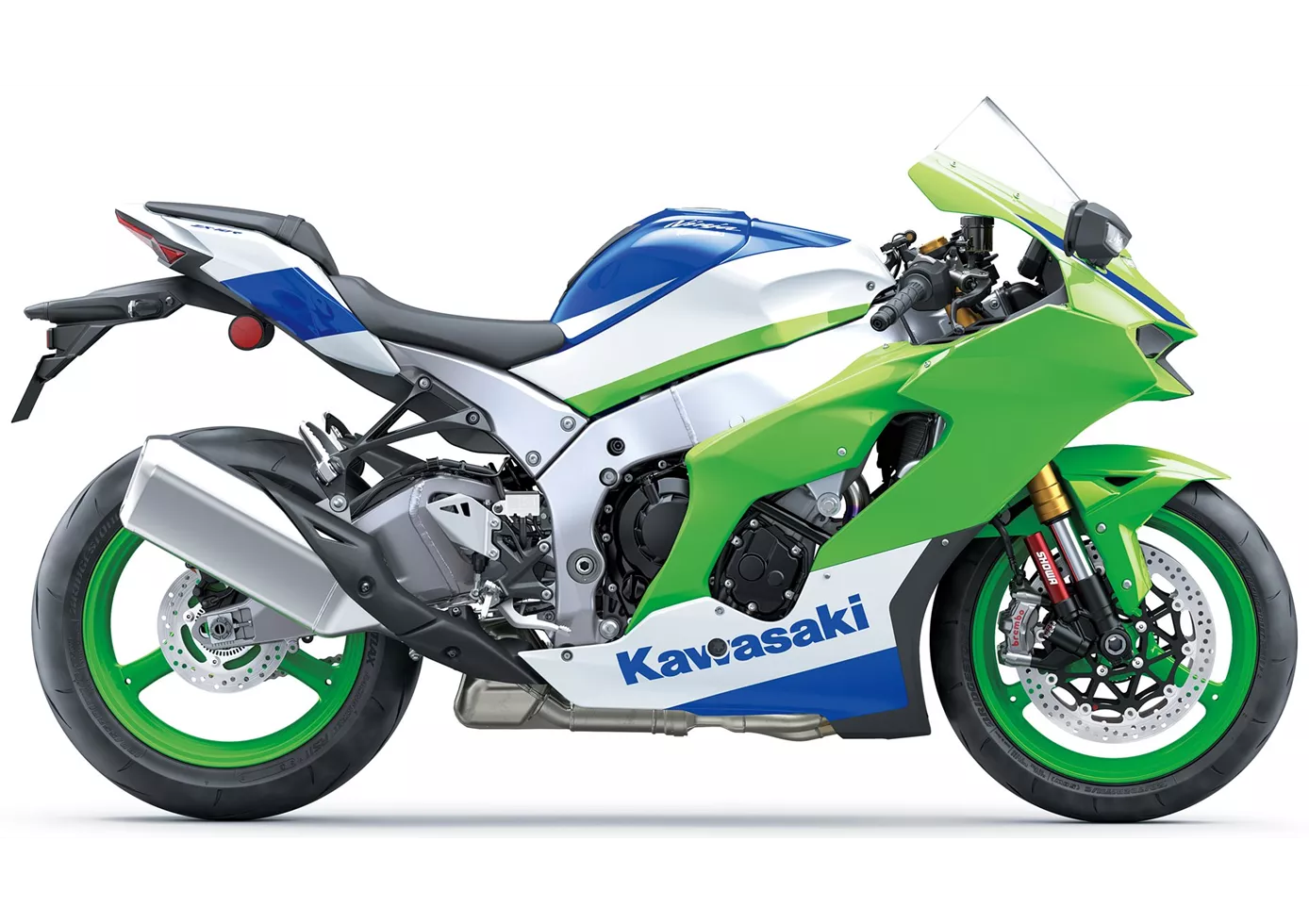

Kawasaki Ninja ZX-10R 40th Anniversary Edition 2024

Kawasaki Ninja ZX-10R 2023

Show all

Same only

Differences

Kawasaki Ninja ZX-10R 40th Anniversary Edition 2024

Kawasaki Ninja ZX-10R 2023

Engine and Drive Train

Engine type	Engine type	In line	Engine type	In line
Bore	Bore	76 mm	Bore	76 mm
Stroke	Stroke	55 mm	Stroke	55 mm
Engine power	Engine power	203 HP	Engine power	203 HP
Rpm at Max. Power	Rpm at Max. Power	13,200 rpm	Rpm at Max. Power	13,200 rpm
Torque	Torque	114.9 Nm	Torque	114.9 Nm
Rpm at Torque	Rpm at Torque	11,400 rpm	Rpm at Torque	11,400 rpm
Compression Ratio	Compression Ratio	13	Compression Ratio	13
Injectors per Cylinder	Injectors per Cylinder	2	Injectors per Cylinder	2
Throttle Bore	Throttle Bore	47 mm	Throttle Bore	47 mm
Starter	Starter	Electric	Starter	Electric
Clutch Type	Clutch Type	Multiplate in oil-bath	Clutch Type	Multiplate in oil-bath
Ignition	Ignition	Digital	Ignition	Digital
Transmission	Transmission	Chain	Transmission	Chain
Transmission Type	Transmission Type	Gearshift	Transmission Type	Gearshift
Number of gears	Number of gears	6	Number of gears	6
Cylinders	Cylinders	4	Cylinders	4
Strokes	Strokes	4-Stroke	Strokes	4-Stroke
Valves per cylinder	Valves per cylinder	4	Valves per cylinder	4
Valves	Valves	DOHC	Valves	DOHC
Cooling	Cooling	liquid	Cooling	liquid
Lubrication	Lubrication	Forced	Lubrication	Forced
Displacement	Displacement	998 ccm	Displacement	998 ccm

Suspension Front

Front suspension	Front suspension	Upside-Down telescopic fork	Front suspension	Upside-Down telescopic fork
Diameter	Diameter	43 mm	Diameter	43 mm
Travel	Travel	120 mm	Travel	120 mm
Adjustment	Adjustment	Compression, Preload, Rebound	Adjustment	Compression, Preload, Rebound

Suspension Rear

Suspension	Suspension	Swing arm	Suspension	Swing arm
Shock absorber	Shock absorber	Monoshock	Shock absorber	Monoshock
Travel	Travel	115 mm	Travel	115 mm
Adjustment	Adjustment	Compression, Preload, Rebound	Adjustment	Compression, Preload, Rebound
Material	Material	Aluminium	Material	Aluminium

Chassis

Frame	Frame	Aluminium	Frame	Aluminium
Trail	Trail	105 mm	Trail	105 mm

Brakes Front

Type	Type	Double disk	Type	Double disk
Diameter	Diameter	330 mm	Diameter	330 mm
Piston	Piston	Four pistons	Piston	Four pistons
Shock mount	Shock mount	Semi-Schwimmsattel	Shock mount	Semi-Schwimmsattel
Technology	Technology	radial, Petal	Technology	radial, Petal
Brand	Brand	Brembo	Brand	Brembo

Brakes Rear

Type	Type	Disc	Type	Disc
Diameter	Diameter	220 mm	Diameter	220 mm
Piston	Piston	Single piston	Piston	Single piston
Shock mount	Shock mount	Floating caliper	Shock mount	Floating caliper

Dimensions and Weights

Front tyre width	Front tyre width	120 mm	Front tyre width	120 mm
Front tyre height	Front tyre height	70 %	Front tyre height	70 %
Front tyre diameter	Front tyre diameter	17 inch	Front tyre diameter	17 inch
Rear tyre width	Rear tyre width	190 mm	Rear tyre width	190 mm
Rear tyre height	Rear tyre height	55 %	Rear tyre height	55 %
Rear tyre diameter	Rear tyre diameter	17 inch	Rear tyre diameter	17 inch
Length	Length	2,085 mm	Length	2,085 mm
Width	Width	750 mm	Width	750 mm
Height	Height	1,185 mm	Height	1,185 mm
Wheelbase	Wheelbase	1,440 mm	Wheelbase	1,440 mm
Seat Height	Seat Height	835 mm	Seat Height	835 mm
Kerb Weight	Kerb Weight	207 kg	Kerb Weight	207 kg
Fuel Tank Capacity	Fuel Tank Capacity	17 l	Fuel Tank Capacity	17 l
License compliancy	License compliancy	A	License compliancy	A
