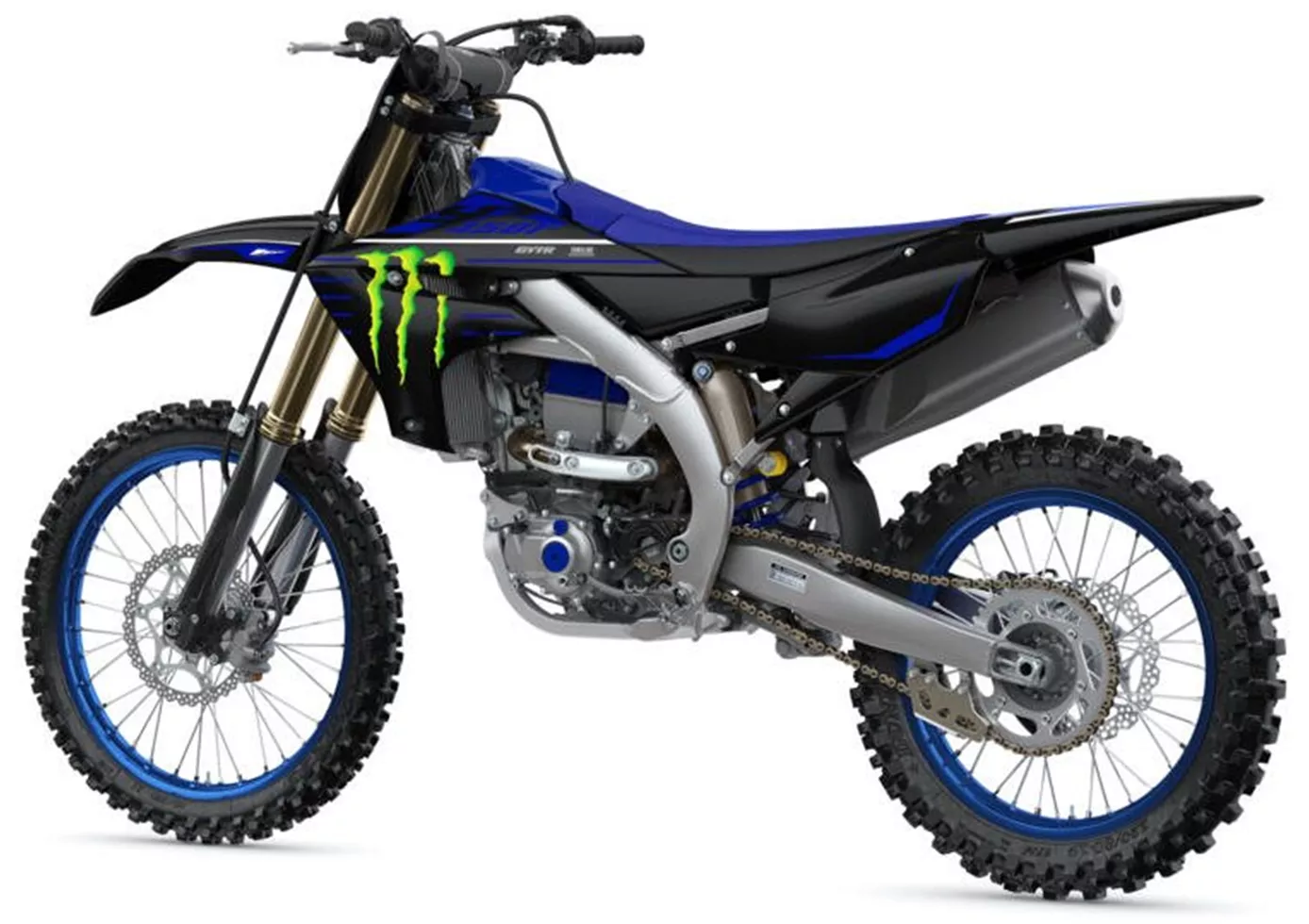

Yamaha YZ450F Monster Energy Edition 2021 vs. Yamaha YZ450F 2021

Technical Specifications Yamaha YZ450F Monster Energy Edition 2021 compared to Yamaha YZ450F 2021

Yamaha YZ450F Monster Energy Edition 2021

Yamaha YZ450F 2021

Show all

Same only

Differences

Yamaha YZ450F Monster Energy Edition 2021

Yamaha YZ450F 2021

Engine and Drive Train

Bore	Bore	97 mm	Bore	97 mm
Stroke	Stroke	60.8 mm	Stroke	60.8 mm
Compression Ratio	Compression Ratio	13	Compression Ratio	13
Fuel system	Fuel system	Injection	Fuel system	Injection
Starter	Starter	Electric	Starter	Electric
Clutch Type	Clutch Type	Multiplate in oil-bath	Clutch Type	Multiplate in oil-bath
Ignition	Ignition	CDI	Ignition	CDI
Transmission	Transmission	Chain	Transmission	Chain
Cylinders	Cylinders	1	Cylinders	1
Strokes	Strokes	4-Stroke	Strokes	4-Stroke
Valves per cylinder	Valves per cylinder	4	Valves per cylinder	4
Valves	Valves	DOHC	Valves	DOHC
Cooling	Cooling	liquid	Cooling	liquid
Displacement	Displacement	449 ccm	Displacement	449 ccm

Suspension Front

Front suspension	Front suspension	Upside-Down telescopic fork	Front suspension	Upside-Down telescopic fork
Travel	Travel	310 mm	Travel	310 mm

Suspension Rear

Suspension	Suspension	Swing arm	Suspension	Swing arm
Shock absorber	Shock absorber	Monoshock	Shock absorber	Monoshock
Shock mount	Shock mount	Deflection	Shock mount	Deflection
Travel	Travel	317 mm	Travel	317 mm
Adjustment	Adjustment	Compression, Preload, Rebound	Adjustment	Compression, Preload, Rebound

Chassis

Frame	Frame	Aluminium	Frame	Aluminium
Frame type	Frame type	Twin Tube	Frame type	Twin Tube
Rake	Rake	26 degree	Rake	26 degree
Trail	Trail	120 mm	Trail	120 mm

Brakes Front

Type	Type	Single disk	Type	Single disk
Diameter	Diameter	270 mm	Diameter	270 mm
Technology	Technology	Wave	Technology	Wave

Brakes Rear

Type	Type	Disc	Type	Disc
Diameter	Diameter	245 mm	Diameter	245 mm

Dimensions and Weights

Front tyre width	Front tyre width	80 mm	Front tyre width	80 mm
Front tyre height	Front tyre height	100 %	Front tyre height	100 %
Front tyre diameter	Front tyre diameter	21 inch	Front tyre diameter	21 inch
Rear tyre width	Rear tyre width	110 mm	Rear tyre width	110 mm
Rear tyre height	Rear tyre height	90 %	Rear tyre height	90 %
Rear tyre diameter	Rear tyre diameter	19 inch	Rear tyre diameter	19 inch
Length	Length	2,185 mm	Length	2,185 mm
Width	Width	825 mm	Width	825 mm
Height	Height	1,285 mm	Height	1,285 mm
Wheelbase	Wheelbase	1,480 mm	Wheelbase	1,480 mm
Seat Height	Seat Height	965 mm	Seat Height	965 mm
Kerb Weight	Kerb Weight	112 kg	Kerb Weight	112 kg
Fuel Tank Capacity	Fuel Tank Capacity	6.2 l	Fuel Tank Capacity	6.2 l
