Yamaha NMAX 125 2020 vs. Yamaha YBR 125 2010

Technical Specifications Yamaha NMAX 125 2020 compared to Yamaha YBR 125 2010

Yamaha NMAX 125 2020

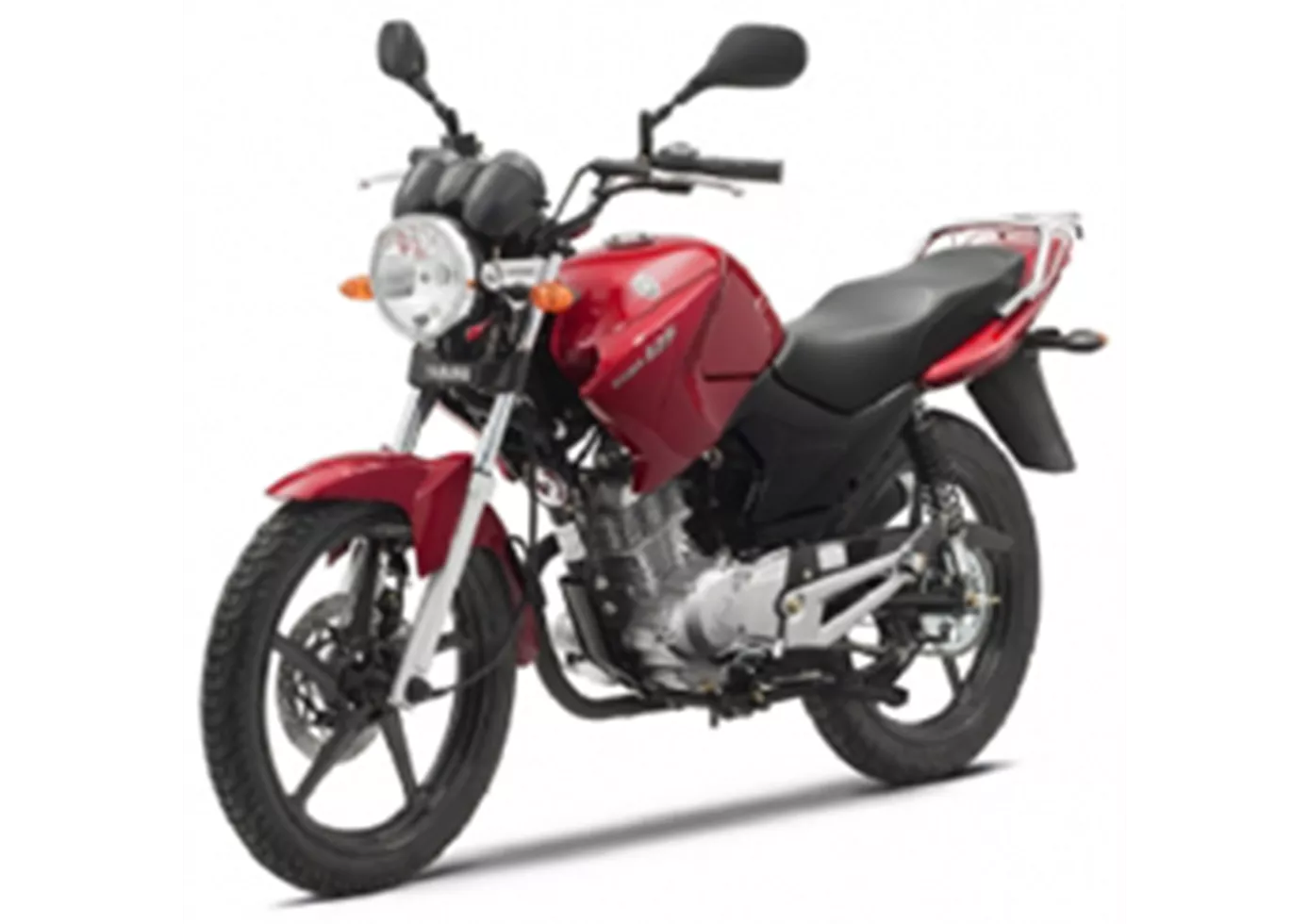

Yamaha YBR 125 2010

Show all

Same only

Differences

Yamaha NMAX 125 2020

Yamaha YBR 125 2010

Engine and Drive Train

Bore	Bore	52 mm	Bore	54 mm
Stroke	Stroke	58.7 mm	Stroke	54 mm
Engine power	Engine power	12.2 HP	Engine power	11 HP
Rpm at Max. Power	Rpm at Max. Power	7,500 rpm	Rpm at Max. Power	7,800 rpm
Torque	Torque	11.7 Nm	Torque	9.6 Nm
Rpm at Torque	Rpm at Torque	7,250 rpm	Rpm at Torque	6,000 rpm
Compression Ratio	Compression Ratio	11.2	Compression Ratio	10
Starter	Starter	Electric	Starter	Kick
Clutch Type	Clutch Type	Centrifugal force	Clutch Type	Multiplate in oil-bath
Ignition	Ignition	CDI	Ignition	Digital
Transmission	Transmission	Belt	Transmission	Chain
Cylinders	Cylinders	1	Cylinders	1
Strokes	Strokes	4-Stroke	Strokes	4-Stroke
Valves per cylinder	Valves per cylinder	4	Valves per cylinder	2
Cooling	Cooling	liquid	Cooling	Air
Displacement	Displacement	125 ccm	Displacement	124 ccm

Suspension Front

Front suspension	Front suspension	Telescopic fork	Front suspension	Telescopic fork

Brakes Front

Type	Type	Single disk	Type	Single disk

Brakes Rear

Type	Type	Disc	Type	Drum

Dimensions and Weights

Rear tyre width	Rear tyre width	130 mm	Rear tyre width	90 mm
Rear tyre height	Rear tyre height	70 %	Rear tyre height	90 %
Rear tyre diameter	Rear tyre diameter	13 inch	Rear tyre diameter	18 inch
Length	Length	1,955 mm	Length	1,980 mm
Width	Width	740 mm	Width	745 mm
Height	Height	1,115 mm	Height	1,080 mm
Wheelbase	Wheelbase	1,350 mm	Wheelbase	1,290 mm
Seat Height	Seat Height	765 mm	Seat Height	780 mm
Fuel Tank Capacity	Fuel Tank Capacity	6.6 l	Fuel Tank Capacity	13 l
License compliancy	License compliancy	A1	License compliancy	A1
