Honda Forza 125 2022 vs. Honda FES 125 S-Wing 2013

Technical Specifications Honda Forza 125 2022 compared to Honda FES 125 S-Wing 2013

Honda Forza 125 2022

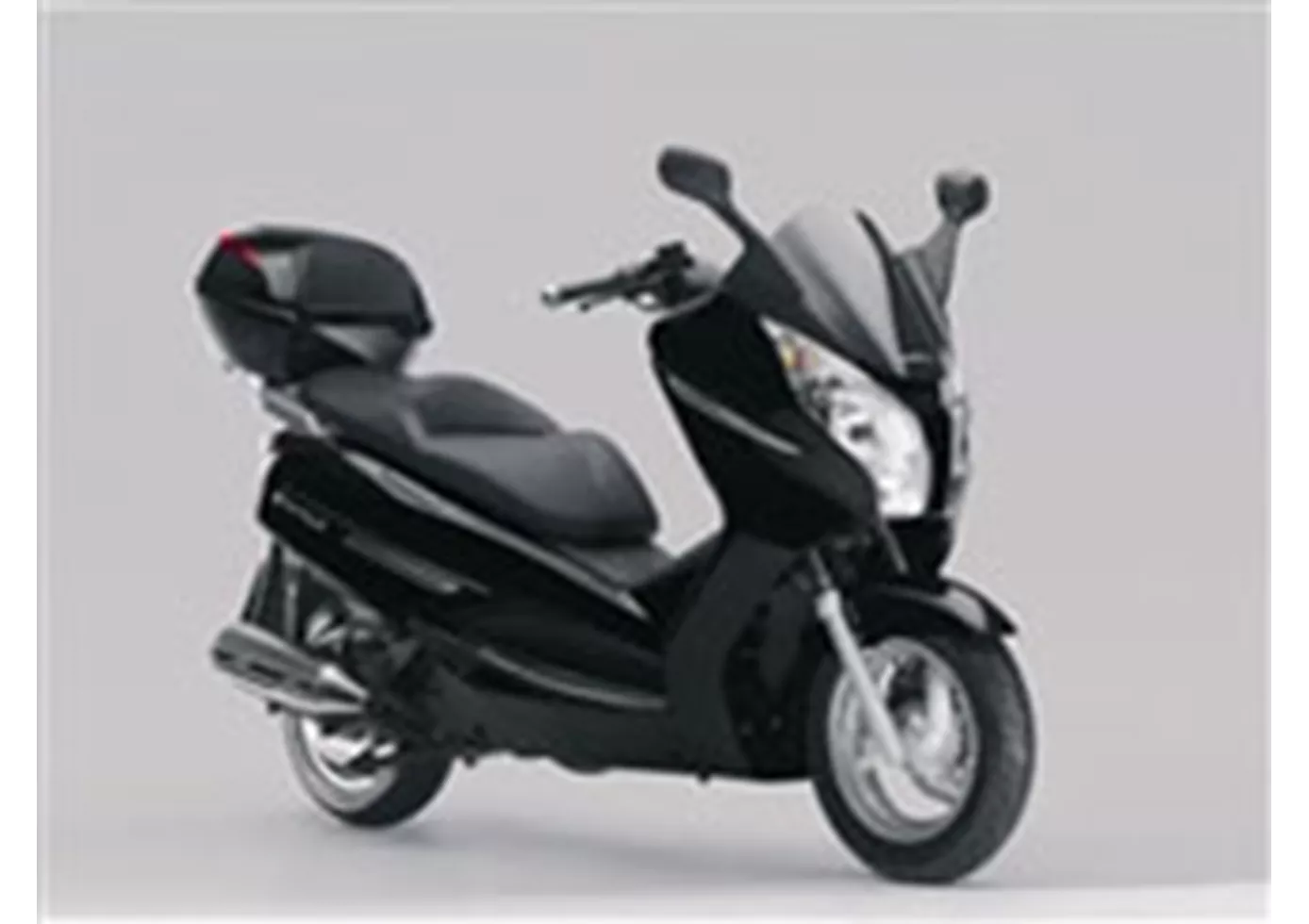

Honda FES 125 S-Wing 2013

Show all

Same only

Differences

Honda Forza 125 2022

Honda FES 125 S-Wing 2013

Engine and Drive Train

Bore	Bore	53.5 mm	Bore	52.4 mm
Stroke	Stroke	55.5 mm	Stroke	57.8 mm
Engine power	Engine power	15 HP	Engine power	13.2 HP
Rpm at Max. Power	Rpm at Max. Power	8,750 rpm	Rpm at Max. Power	9,000 rpm
Torque	Torque	12.2 Nm	Torque	11.1 Nm
Rpm at Torque	Rpm at Torque	6,500 rpm	Rpm at Torque	7,500 rpm
Compression Ratio	Compression Ratio	11.5	Compression Ratio	11
Starter	Starter	Electric	Starter	Electric
Ignition	Ignition	Digital, Transistor	Ignition	Digital, Transistor
Transmission	Transmission	Belt	Transmission	Belt
Transmission Type	Transmission Type	Variomatic	Transmission Type	Variomatic
Cylinders	Cylinders	1	Cylinders	1
Strokes	Strokes	4-Stroke	Strokes	4-Stroke
Cooling	Cooling	liquid	Cooling	liquid
Displacement	Displacement	125 ccm	Displacement	125 ccm

Suspension Rear

Suspension	Suspension	Unit Swing	Suspension	Unit Swing

Chassis

Frame	Frame	Steel	Frame	Steel

Brakes Front

Piston	Piston	Double piston	Piston	Three pistons

Brakes Rear

Type	Type	Disc	Type	Disc
Piston	Piston	Single piston	Piston	Single piston

Dimensions and Weights

Front tyre width	Front tyre width	120 mm	Front tyre width	110 mm
Front tyre height	Front tyre height	70 %	Front tyre height	90 %
Front tyre diameter	Front tyre diameter	15 inch	Front tyre diameter	13 inch
Rear tyre width	Rear tyre width	140 mm	Rear tyre width	130 mm
Rear tyre height	Rear tyre height	70 %	Rear tyre height	70 %
Rear tyre diameter	Rear tyre diameter	14 inch	Rear tyre diameter	12 inch
Length	Length	2,140 mm	Length	2,090 mm
Width	Width	755 mm	Width	745 mm
Height	Height	1,500 mm	Height	1,435 mm
Wheelbase	Wheelbase	1,505 mm	Wheelbase	1,490 mm
Seat Height	Seat Height	780 mm	Seat Height	776 mm
Kerb Weight (with ABS)	Kerb Weight (with ABS)	161 kg	Kerb Weight (with ABS)	158 kg
Fuel Tank Capacity	Fuel Tank Capacity	11.5 l	Fuel Tank Capacity	9.4 l
License compliancy	License compliancy	A1	License compliancy	A1

Equipment

Equipment	Equipment	LED-Headlights, Windscreen electronically adjustable	Equipment	Topcase
