Motorhispania KN2 125 2013 vs. Motorhispania KN2 125 2014

Technical Specifications Motorhispania KN2 125 2013 compared to Motorhispania KN2 125 2014

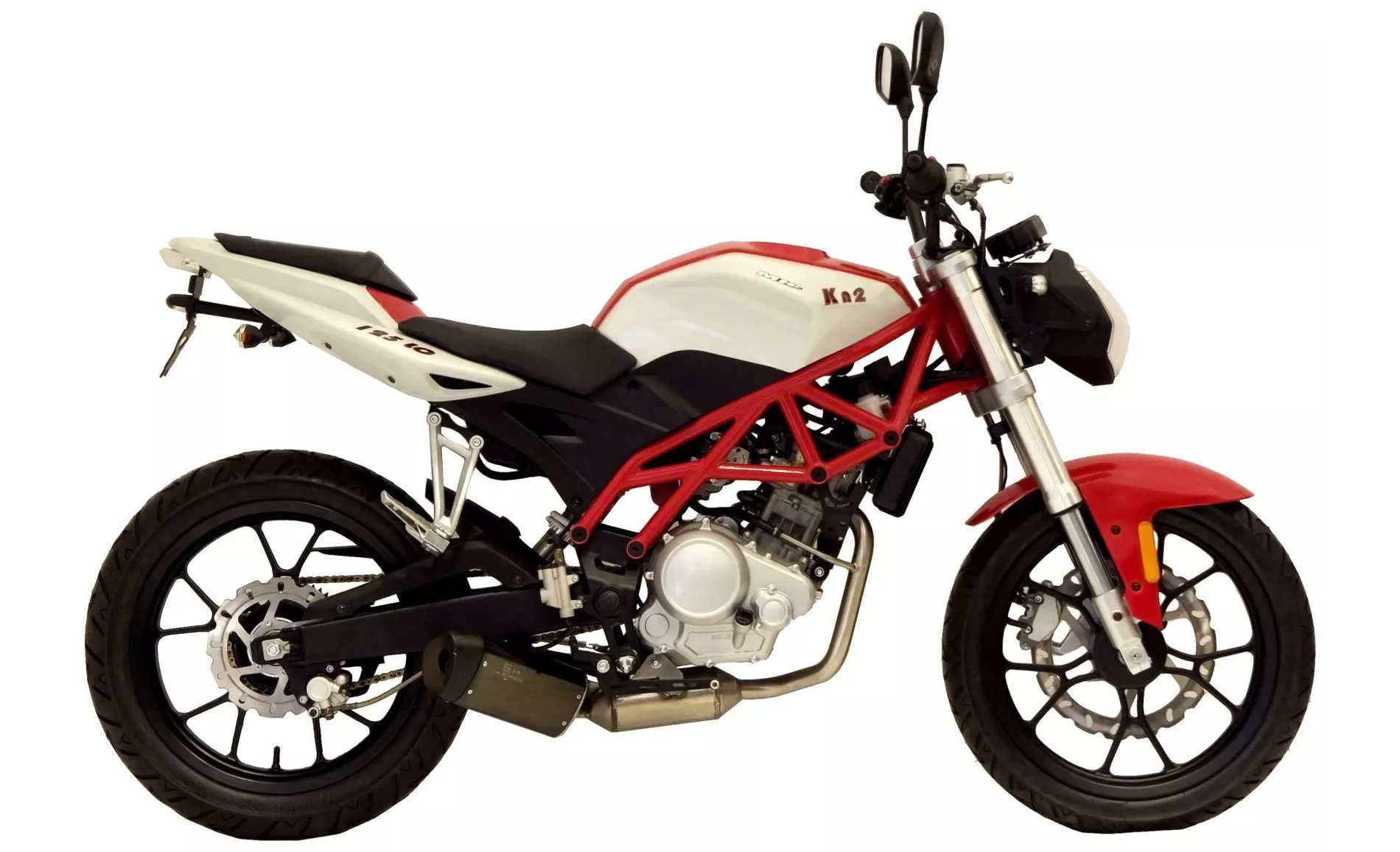

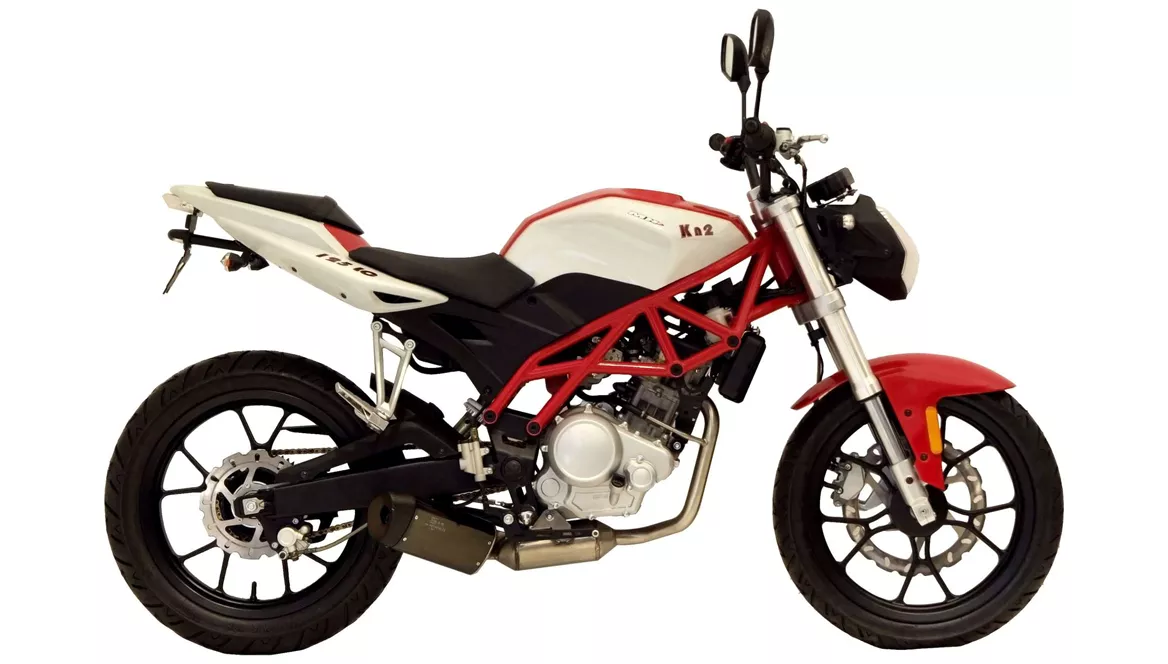

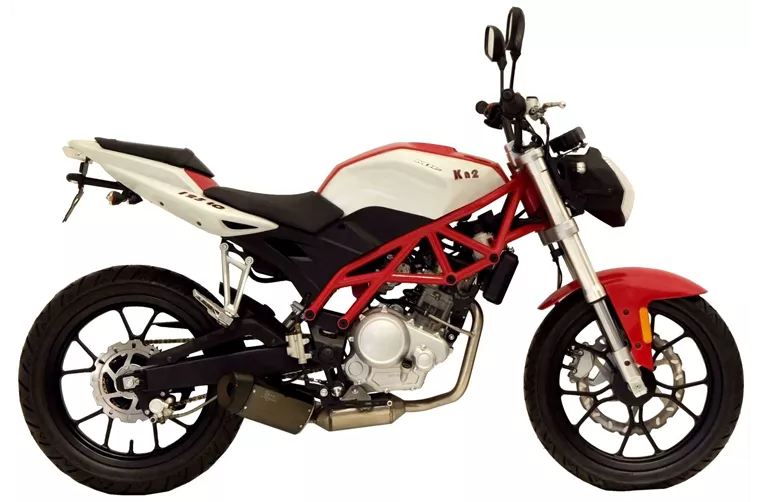

Motorhispania KN2 125 2013

Motorhispania KN2 125 2014

Show all

Same only

Differences

Motorhispania KN2 125 2013

Motorhispania KN2 125 2014

Engine and Drive Train

Bore	Bore	52 mm	Bore	52 mm
Stroke	Stroke	58.6 mm	Stroke	58.6 mm
Engine power	Engine power	15 HP	Engine power	15 HP
Rpm at Max. Power	Rpm at Max. Power	9,500 rpm	Rpm at Max. Power	9,500 rpm
Torque	Torque	11.2 Nm	Torque	11.2 Nm
Rpm at Torque	Rpm at Torque	7,500 rpm	Rpm at Torque	7,500 rpm
Compression Ratio	Compression Ratio	11	Compression Ratio	11
Clutch Type	Clutch Type	Multiplate in oil-bath	Clutch Type	Multiplate in oil-bath
Transmission	Transmission	Chain	Transmission	Chain
Number of gears	Number of gears	6	Number of gears	6
Cylinders	Cylinders	1	Cylinders	1
Strokes	Strokes	4-Stroke	Strokes	4-Stroke
Cooling	Cooling	liquid	Cooling	liquid
Displacement	Displacement	124.7 ccm	Displacement	124.7 ccm

Suspension Front

Front suspension	Front suspension	Upside-Down telescopic fork	Front suspension	Upside-Down telescopic fork

Suspension Rear

Shock absorber	Shock absorber	Monoshock	Shock absorber	Monoshock

Chassis

Frame	Frame	Steel	Frame	Steel
Frame type	Frame type	Tubular	Frame type	Tubular

Brakes Front

Piston	Piston	Double piston	Piston	Double piston

Brakes Rear

Type	Type	Disc	Type	Disc
Piston	Piston	Double piston	Piston	Double piston

Dimensions and Weights

Front tyre width	Front tyre width	100 mm	Front tyre width	100 mm
Front tyre height	Front tyre height	80 %	Front tyre height	80 %
Front tyre diameter	Front tyre diameter	17 inch	Front tyre diameter	17 inch
Rear tyre width	Rear tyre width	130 mm	Rear tyre width	130 mm
Rear tyre height	Rear tyre height	70 %	Rear tyre height	70 %
Rear tyre diameter	Rear tyre diameter	17 inch	Rear tyre diameter	17 inch
Length	Length	1,959 mm	Length	1,959 mm
Width	Width	845 mm	Width	845 mm
Height	Height	1,040 mm	Height	1,040 mm
Wheelbase	Wheelbase	1,355 mm	Wheelbase	1,355 mm
Seat Height	Seat Height	810 mm	Seat Height	810 mm
Dry Weight	Dry Weight	120 kg	Dry Weight	120 kg
Kerb Weight	Kerb Weight	131 kg	Kerb Weight	131 kg
Fuel Tank Capacity	Fuel Tank Capacity	12.5 l	Fuel Tank Capacity	12.5 l
Top Speed	Top Speed	95 km/h	Top Speed	95 km/h
License compliancy	License compliancy	A1	License compliancy	A1
